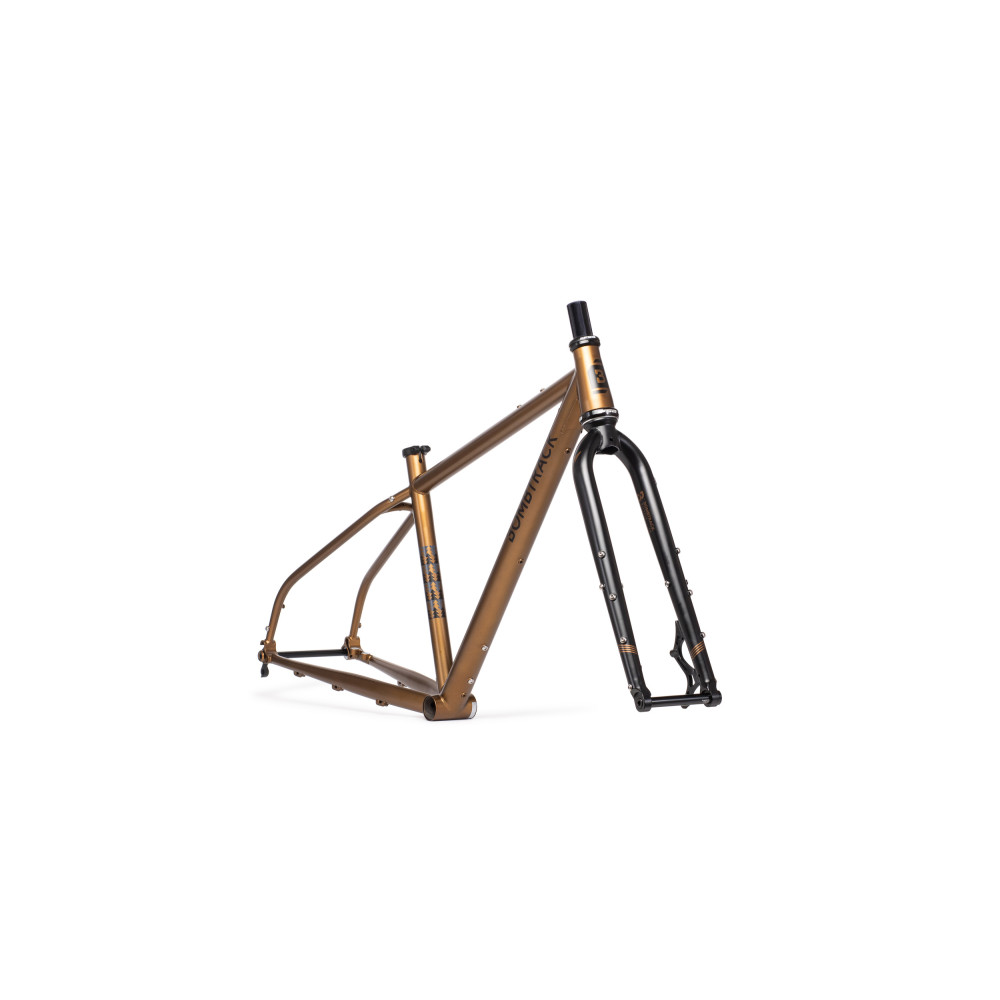

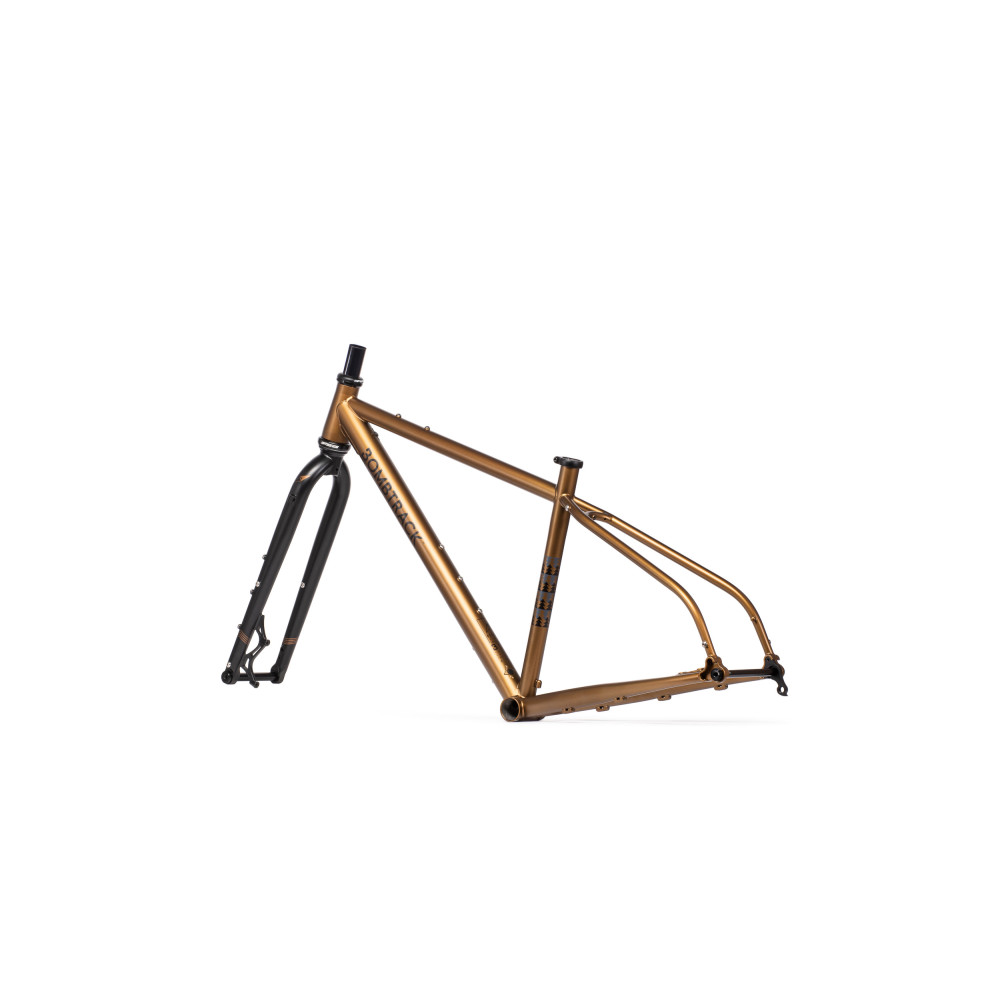

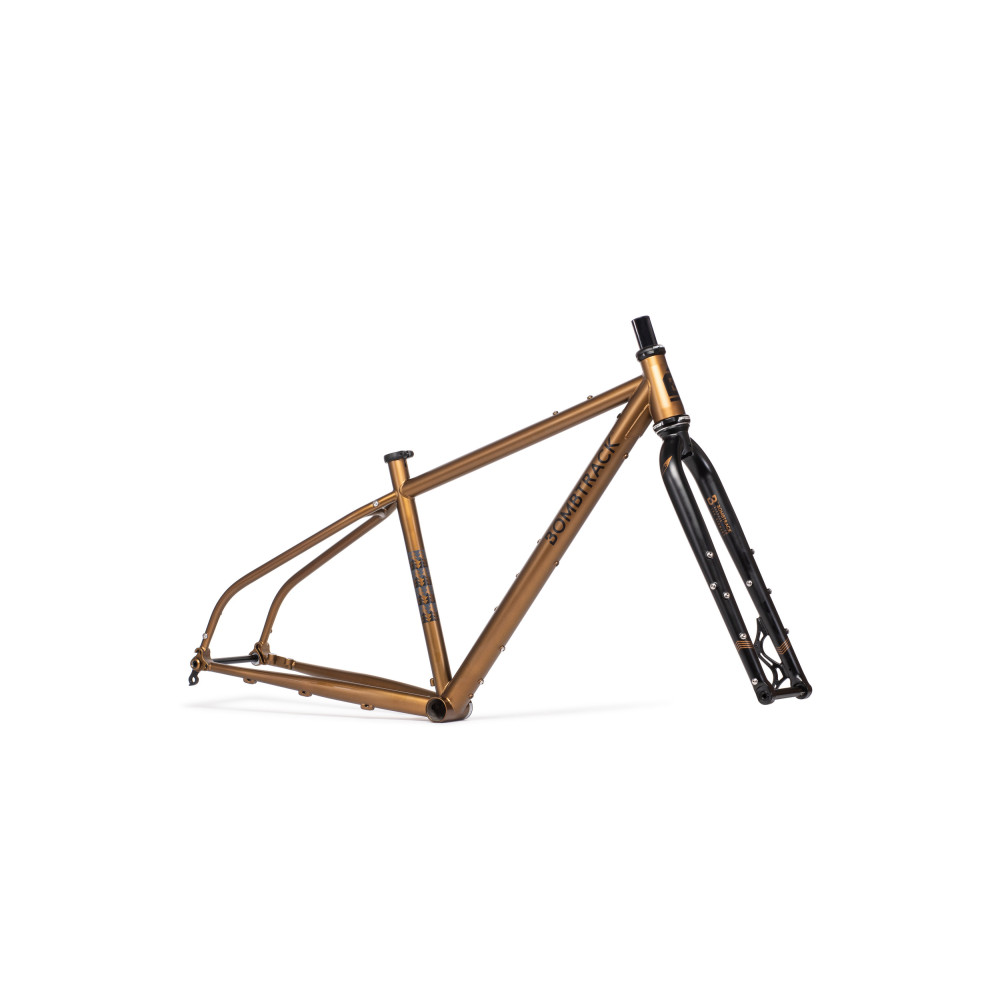

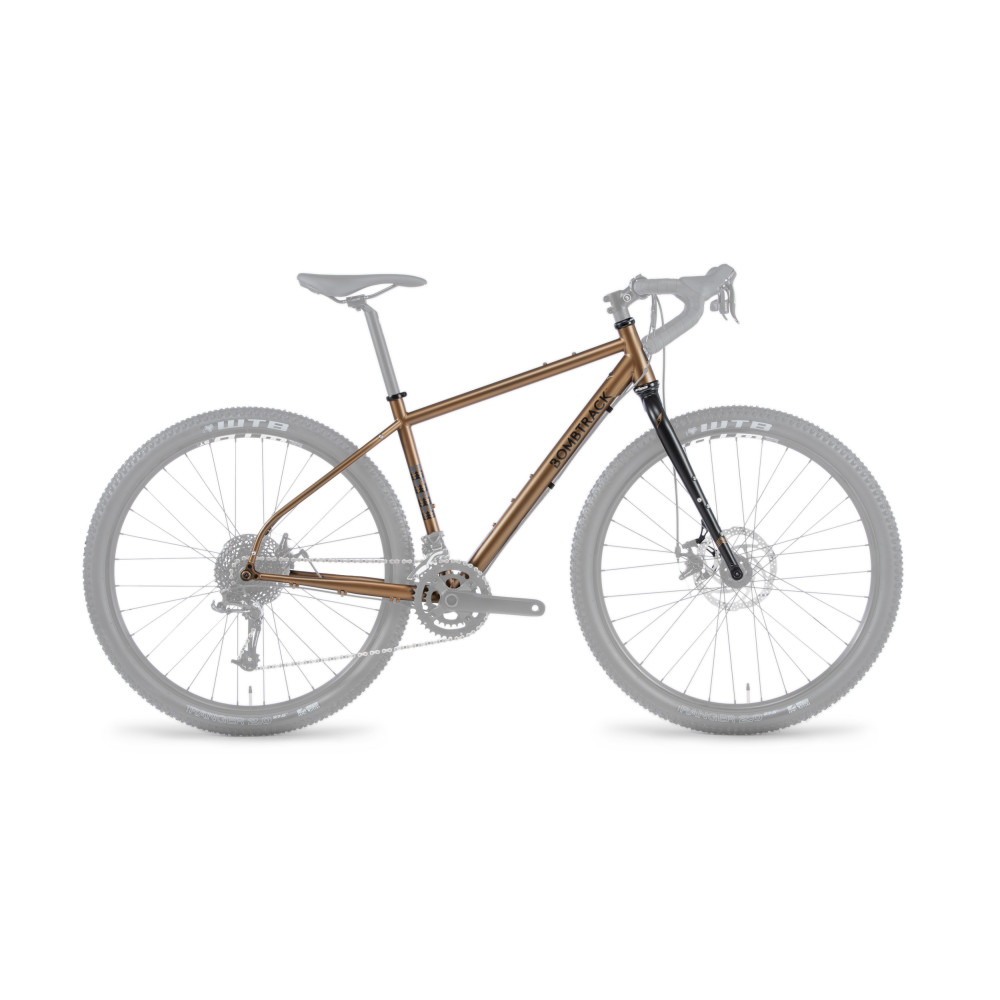

Bombtrack Beyond Gold Frame Fork Set 2020
The Beyond is our expedition machine, if it were a car it would be a Land Rover Defender, tough and dependable and willing to go wherever you’re willing to pedal. Introduced last year, the Beyond has proven itself on countless journeys, not least when our friend Marc Maurer rode 5600Km from Istanbul to Tehran. Designed as a bike packers dream, the Beyond features mounting options for front and rear racks as well as up to five bottle cages. And Using a double butted steel frame its high front makes for comfortable endurance riding. To ensure consistent fitting, the wide 700C tyres are replaced by 650B alternatives on the smallest sizes.
Highlights

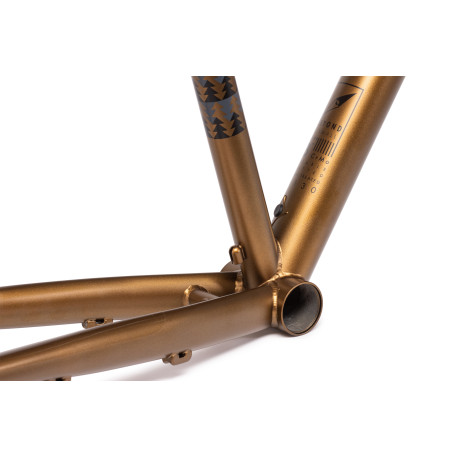

Double butted crmo frame with tapered head tube, rack and fender mounts and BSA bottom bracket.

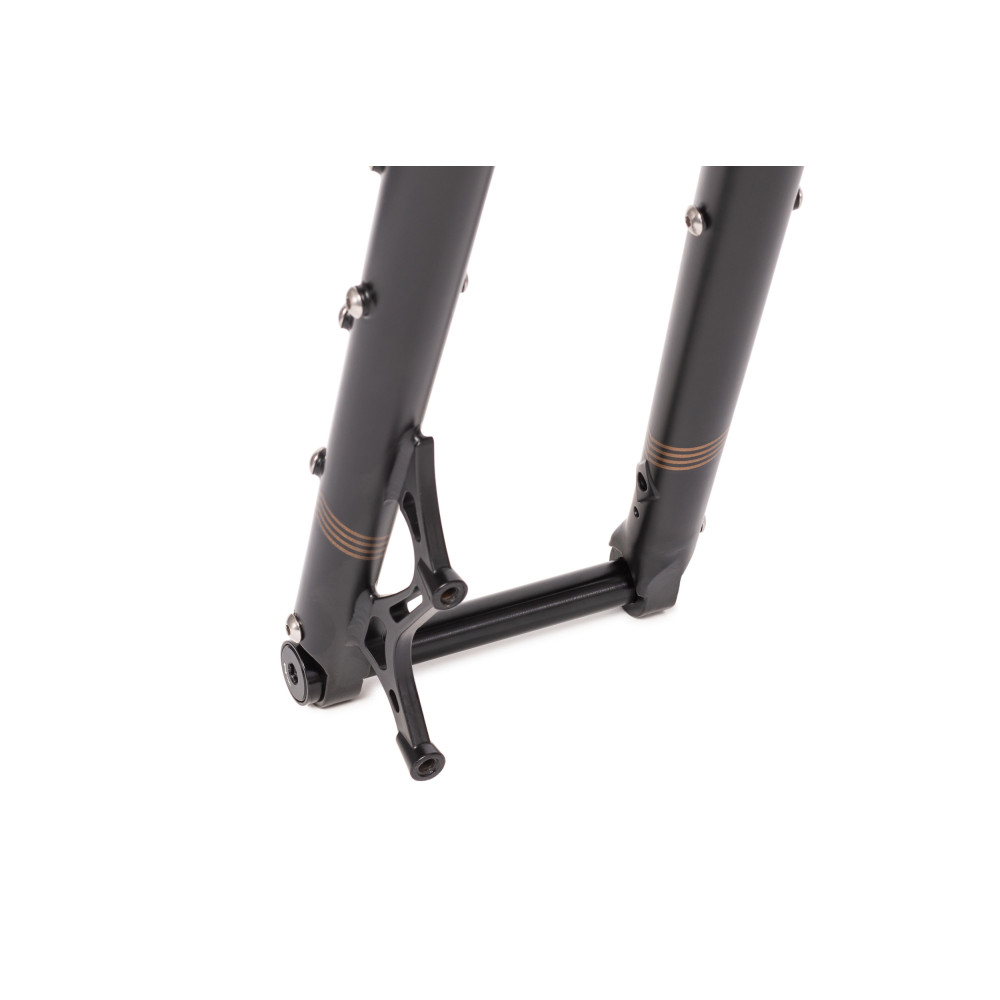

Fork with internal light cable routing and fender, rack and triple cage mounts.
Top tube bag direct mounts, triple cage mounts on down tube for optimized bottle position, cage mounts underneath the down tube.

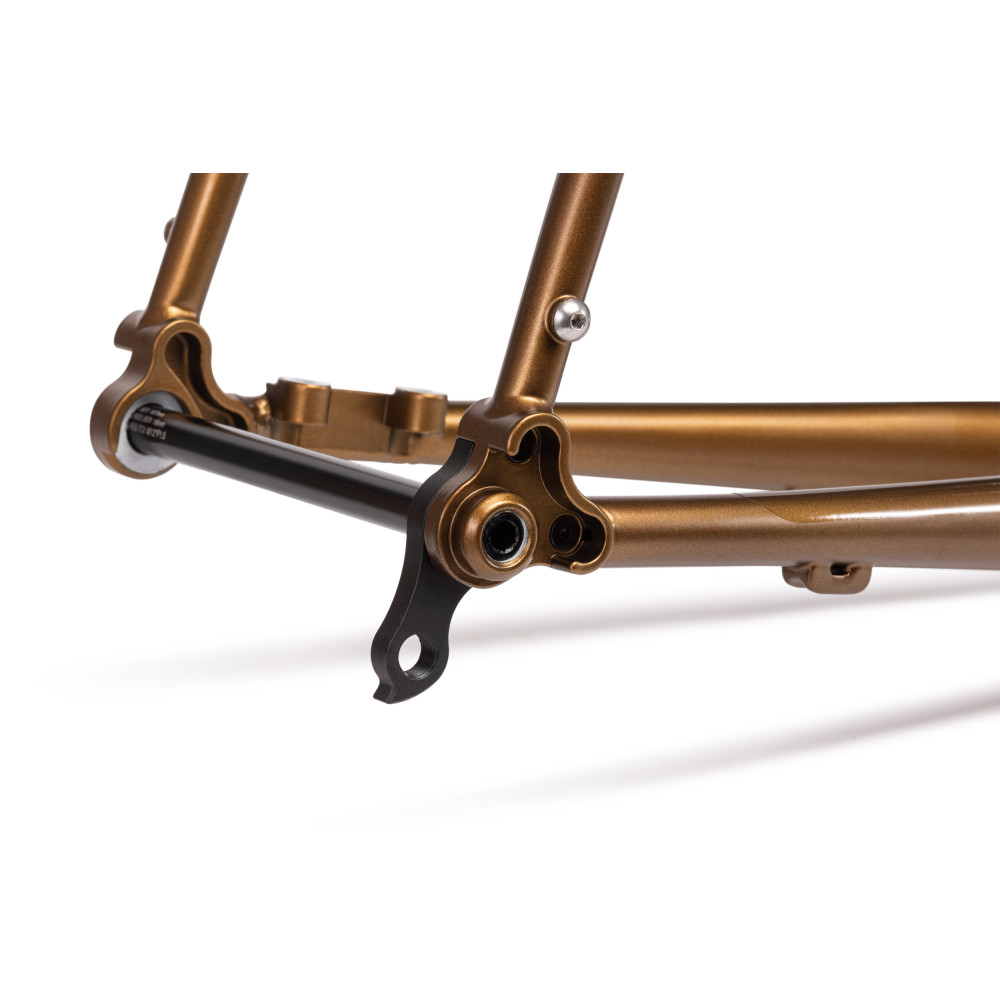

New rear dropout. Same hanger as on the Beyond+.
Product details :
| WHEEL SIZE | XS-S 27.5'', M-XL 29'' |
| COLOR 1 | Matt Metallic Antique Gold |
| COLOR 2 | - |
| FRAME | double butted crmo tubing, with cage, rack and fender mounts, replaceable hanger |
| FORK | 4130 crmo, tapered double butted blades, 1.1/2'' - 1.1/8'' tapered steerer, with fender / rack / triple cage mounts |
| HEADSET | FSA NO.21/12/44 sealed external aheadset, 1.1/2'' - 1.1/8'' |

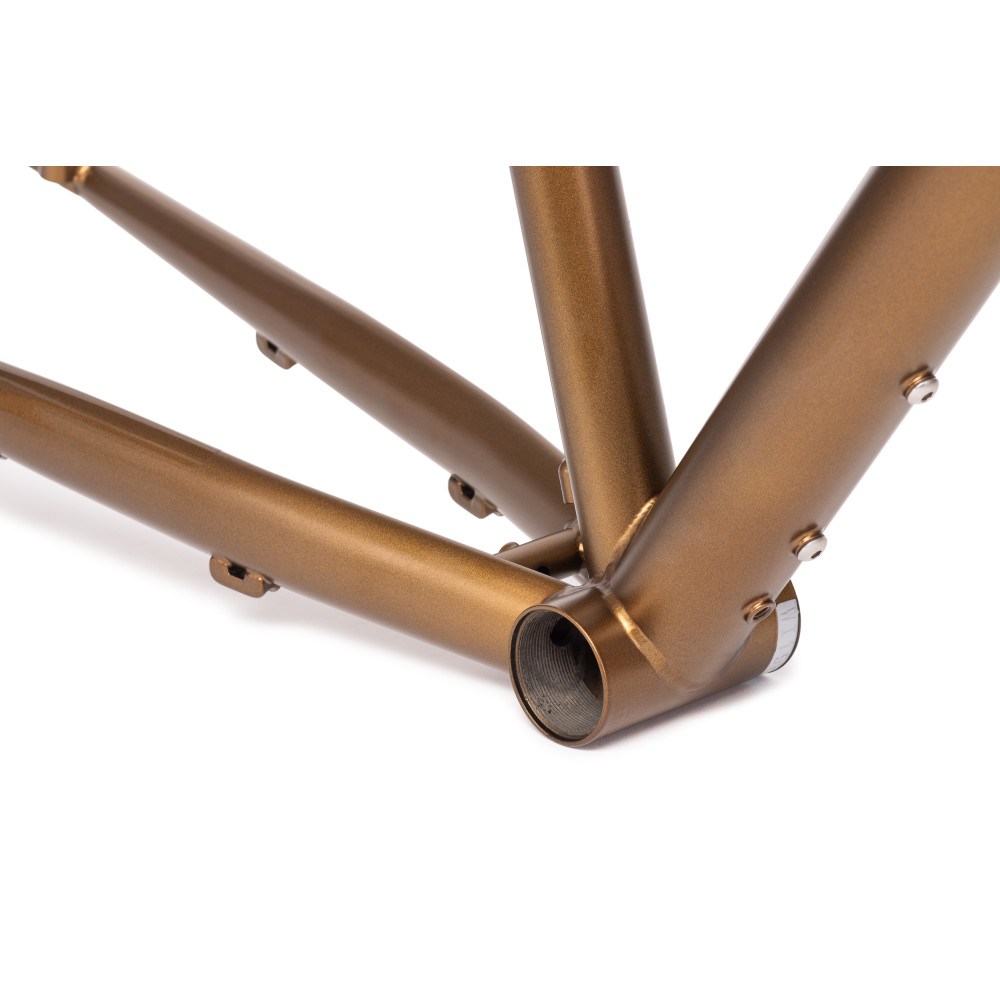

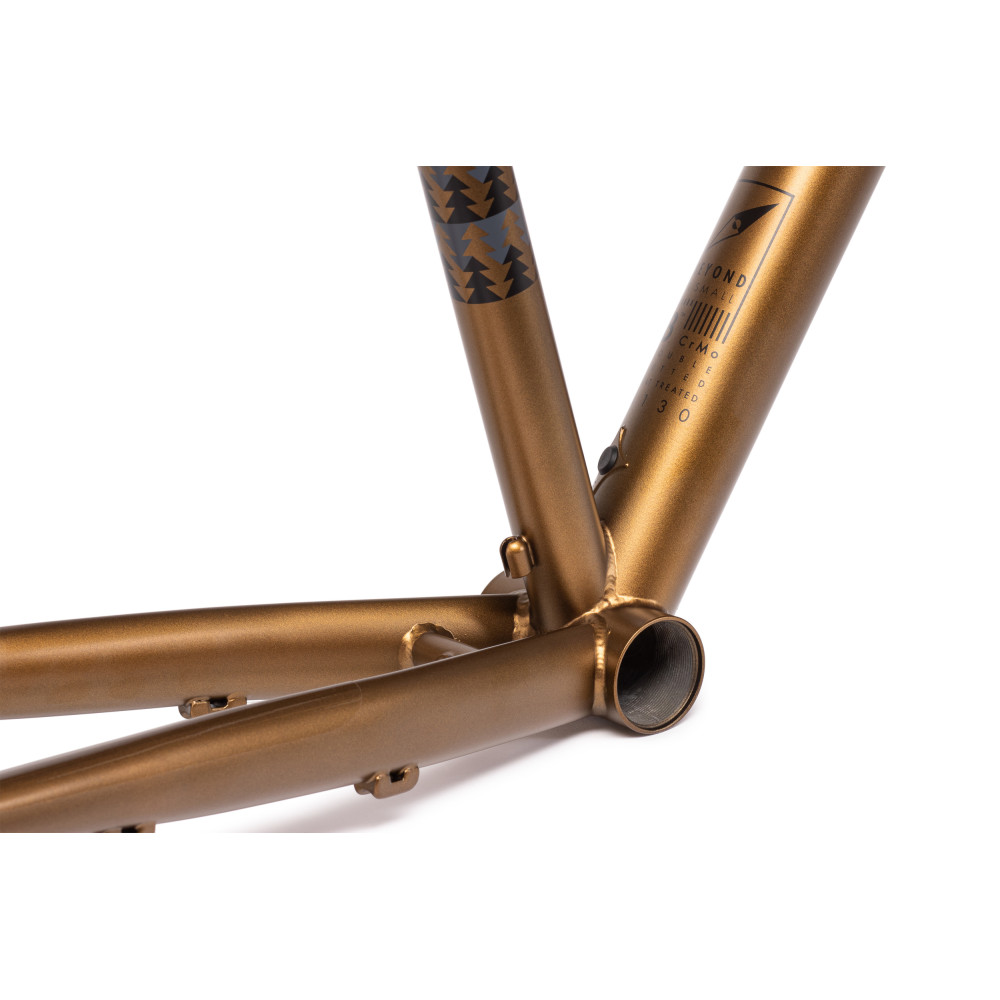

| BB SHELL STANDARD (BB NOT INCL.) | BSA, 73 mm shell |

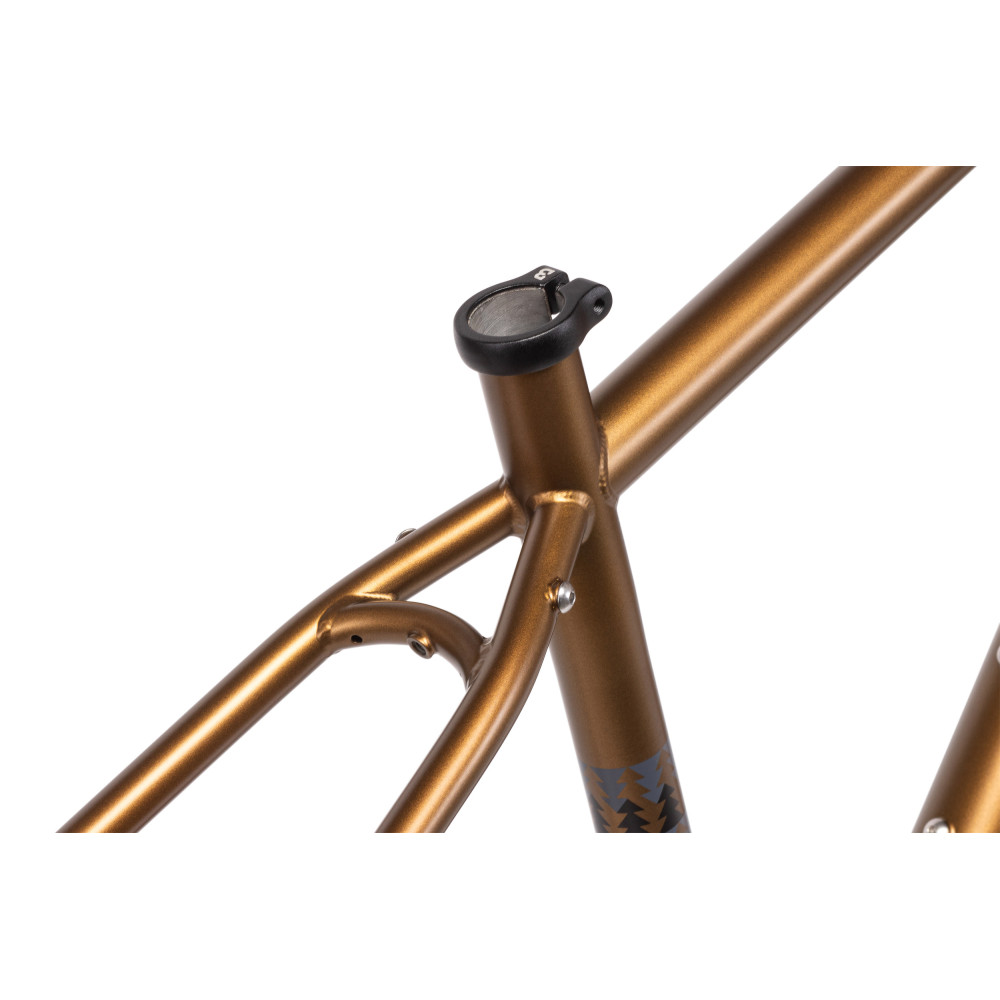

| SEAT CLAMP | BOMBTRACK ORIGIN forged alloy seat clamp, 29.8 mm |
| AXLE TYPE FRONT | TA 15 x 100 mm; M15 x 1.5 mm |

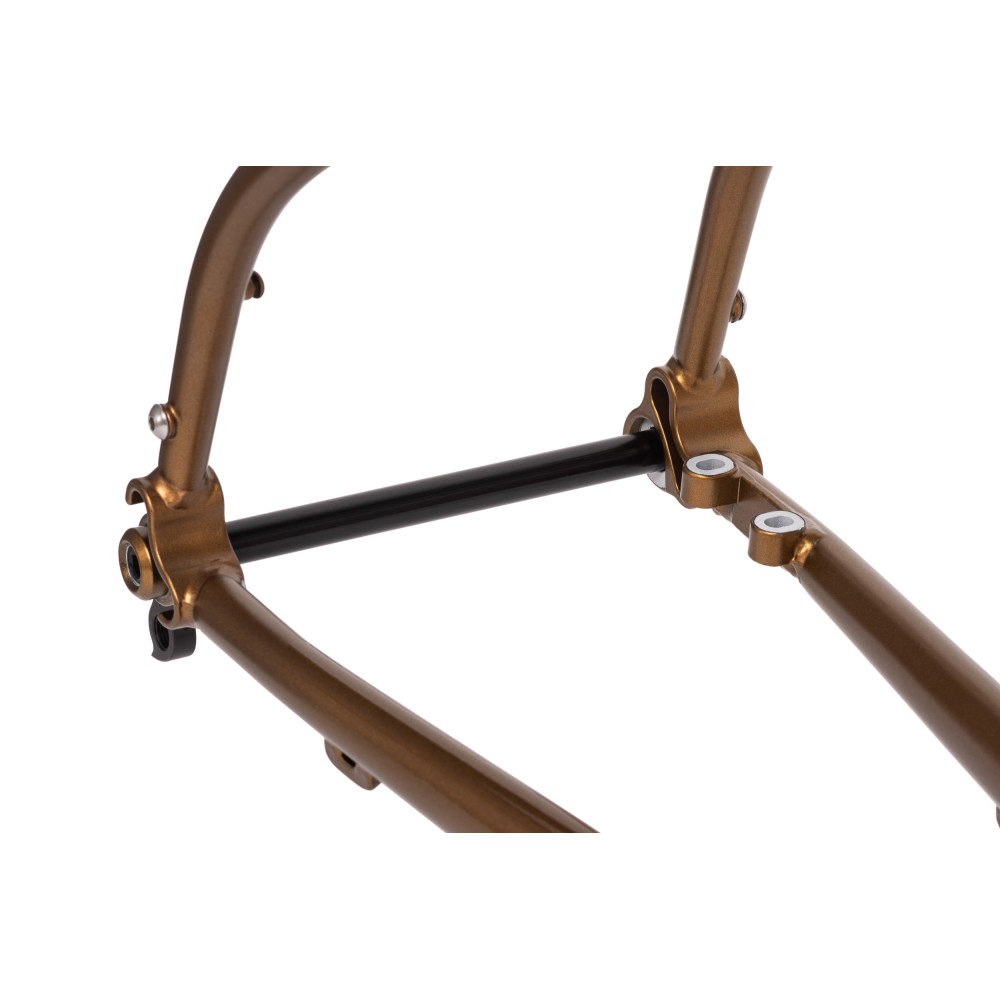

| AXLE TYPE REAR | TA 12 x 142 mm; M12 x 1.5 mm |
| BRAKE TYPE | Postmount Front 160 mm min. rotor size, Flatmount Rear |
| WEIGHT | Frame 2463 g (size M), Fork 1504 g (300 mm steerer) |
| Frame size | XS | S | M | L | XL |
| Seat Tube Length (C-T, mm) | 400 | 440 | 480 | 520 | 560 |
| Horizontal TT length (mm) | 493 | 522 | 558 | 590 | 623 |
